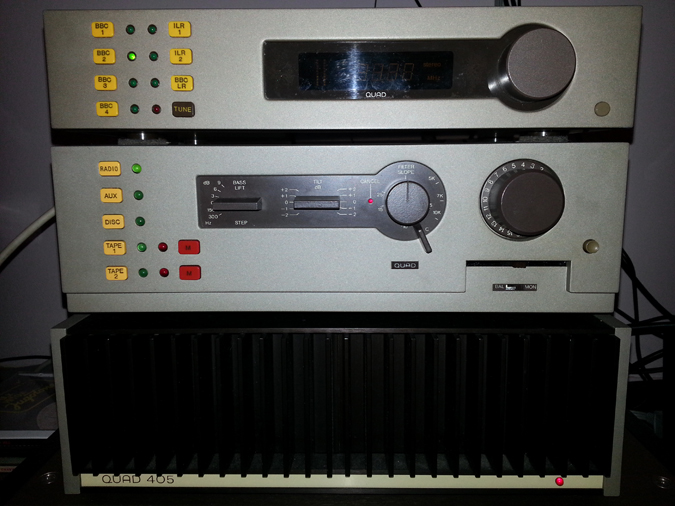

Quad 405 specifications :
Two-channel, "current-dumping" solid-state power amplifier.
Rated output: 100Wpc into 8 ohms (20dBW).
Frequency response: -1dB at 20Hz (12dB/octave subsonic filter), -0.5dB at 20kHz, -3dB at 50kHz.
Sensitivity: 500mV in for 100W out.
Power bandwidth: 10Hz-20kHz.
Damping factor: 80. Channel Separation: 85dB at 1kHz.
Dimensions: 13.4" (340mm) W by 4.5" (115mm) H by 7.7" (195mm) D. Weight: 20 lbs (9kg).
Quad 44 Pre Amplifier Specification
Line Source Frequency Response : 30 Hz - 20 kHz (+/- 1db)
Disc RIAA Frequency Response : 30 Hz - 20 kHz (+/- 0.5db)
Distortion: < 0.05%
Input Impedence: Variable according to modules (Radio & Tape typically 100mV)
Interchannel Balance: +/- 0.5 db
Crosstalk: > 70db
Power consumption: 7 Watts
Mains voltage : 110-120V or 220-240V (interchangeable on PCB)
Dimensions (WxDxH) : 321 x 103 x 207 (mm)
Weight: 4 kg
Quad FM4 tuner Specification
Frequency Range: 88-108 MHz
Sensitivity: 2.7µV (mono) / 25 µV (stereo)
Output level: 100mV (30% modulation)
Mains Voltage: 220-240 or 110-120 AC (switchable at the rear)
Dimensions (WxDxH): 321 x 207 x 64 (mm)
Weight: 3 kg

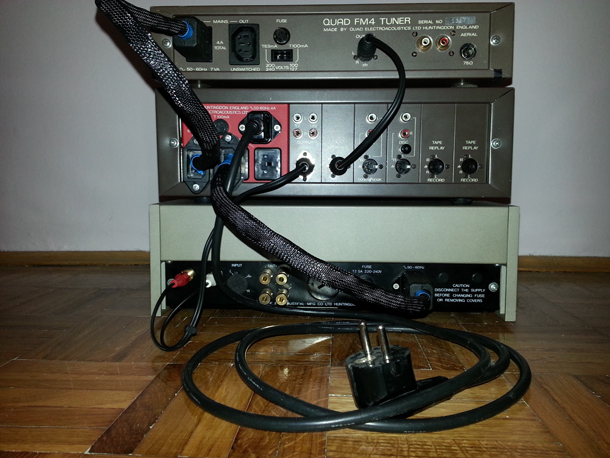

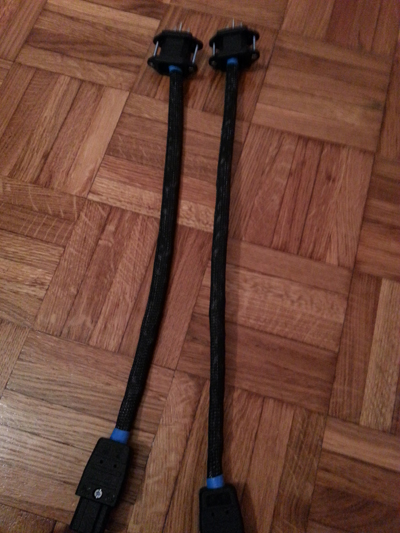

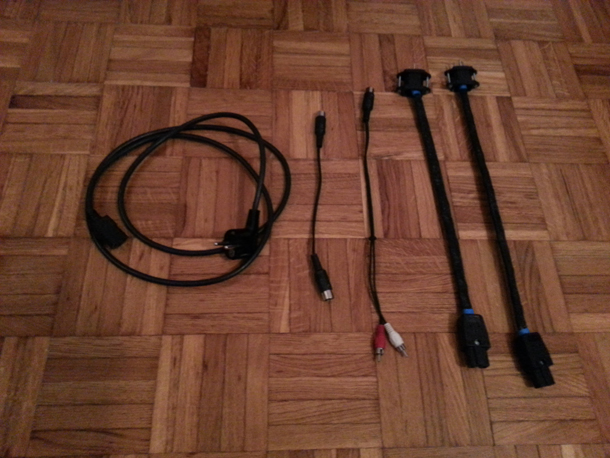

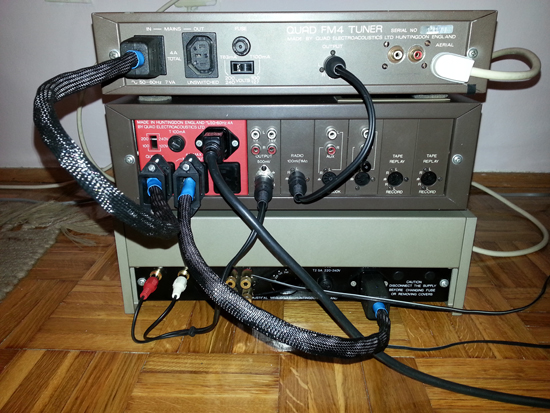

Uredaji su u izvrsnom stanju te uz njih dolaze i dva strujna kabela za spajanje pojacala i tunera sa preampom preko kojeg mozete paliti (ako tako zelite) sve uredaje istovremeno (znaci paljenjem preampa pali se pojacalo i tuner) te interkonekcijski kabeli . za sve dodatne informacije slobodno me kontaktirajte na 098 316 093 ili 091 3316 093 Dejan.
cijena je prava sitnica 5500 kn. mogucnost kupnje na rate na nacin da kupac kupi odredene proizvode po mom izboru kupi na rate i jednostavo izvrsimo zamjenu
- slika 1a.jpg (234.64 KiB) Pogledano 9525 put/a.
